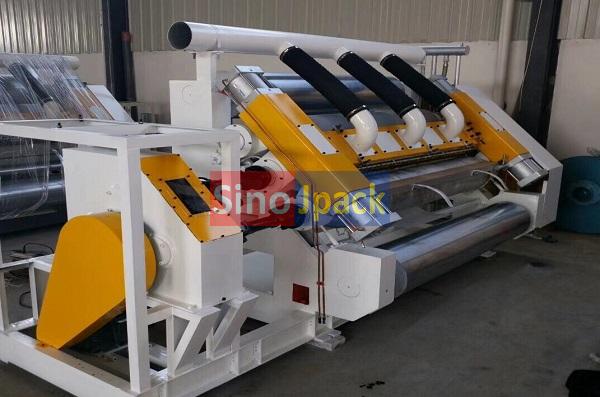

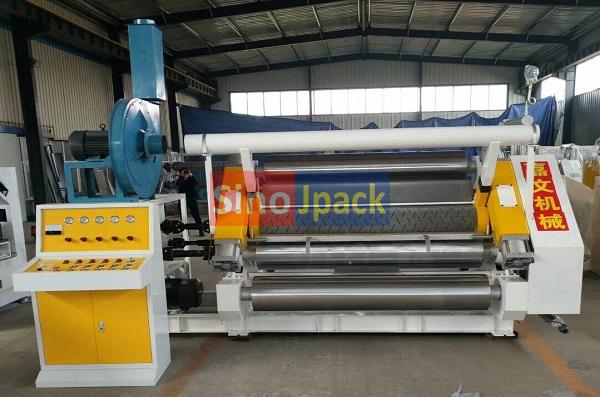

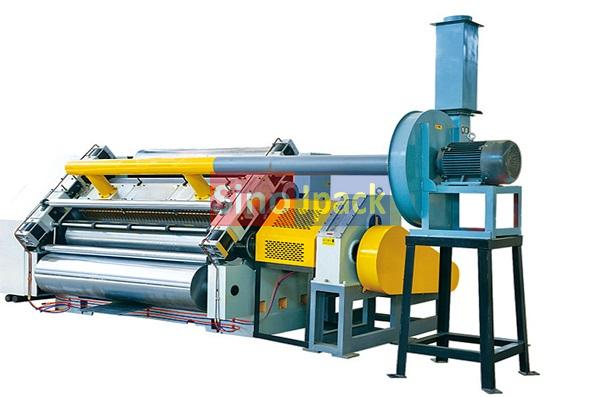

Single facer

  • Design width: 1400-2500mm
  • Design speed: 60-150m/min.
  • Flute type: A、B、C、E、F
  • Optional: Alloy or Tungsten carbide corrugated roll.
  • Product description: Single facer machine Design speed:60-150m/min Effective width:1400mm-2500mm
  • INQUIRY

Feature

●Design speed:60-150m/min

●Effective width:1400mm-2500mm

●Corrugated roller : Ø 280 Ø320mm

●Drive reduce box with oil immerse type lubricating to reduce noise keep running stable. adopt gimbal transmission . sepate power.(optional)

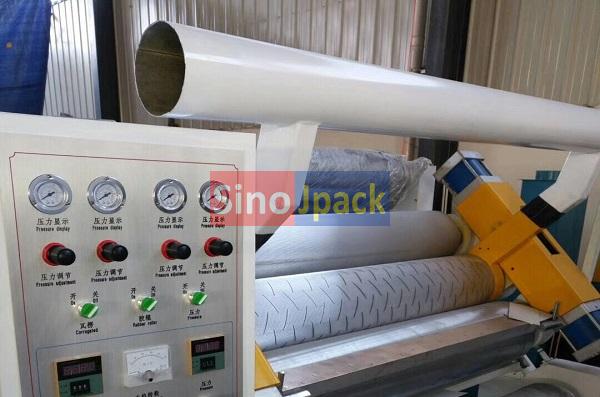

●Corrugating roller, pressure roller and glue roller by pneumatic adjustment

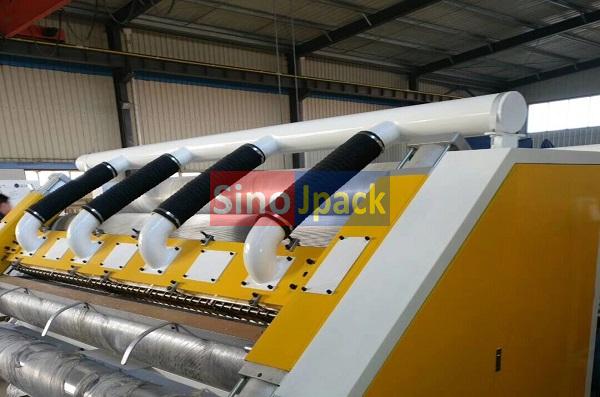

●Carboard transmit adopt vacuum suction method, with wind control system, keep flute profiles stable of the lower roller in the condition of running up.

●Bearing of corrugated and pressure roller adopt high temperature lubricate grease

●Glue parts auto supply glue circularly

●The upper-lower corrugating roller are made of 48 CrMo high quality alloy steel after heat-treatment. the hardness HRC 58-60 degree ,the surface be grinded.

●The glue part surface are treated by special mesh snicked and chrome plated.

●Motorized or manual glue width dividing to match the paper width.

●Glue part can be running independently or non-independently or non- independently while stopped.

Parameter

Air bar

0.6MPA

Electric power

18.5KW

Electric voltage

380V/415V/50HZ or 380V/50HZ

Paper work width

1670mm

Min. GSM of flute paper

≥70GSM

Max. GSM of flute paper

≤200GSM

Economic speed

80-120m/min.

Total weight

5800KGS
