Corrugated paperboard production line
Main
feature
The 2 layer, 3 layer, 5 layer,7layer and multi-function corrugated cardboard

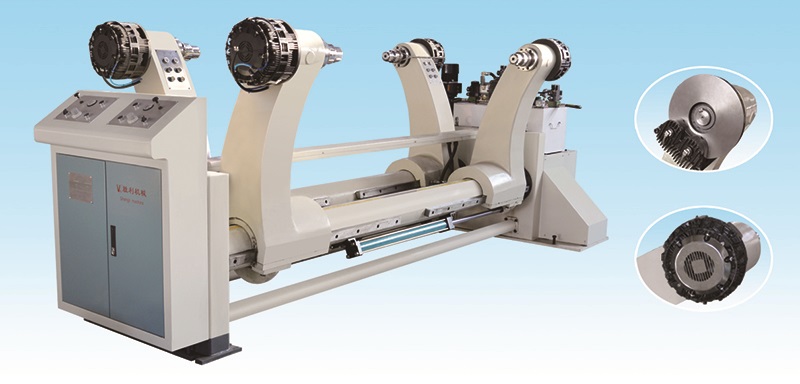

production line mainly consist of the following equipments: Mill roll stand,

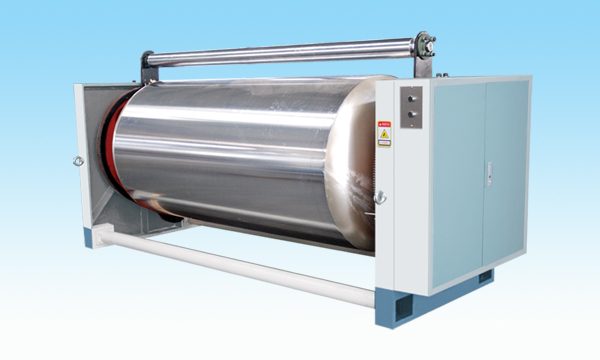

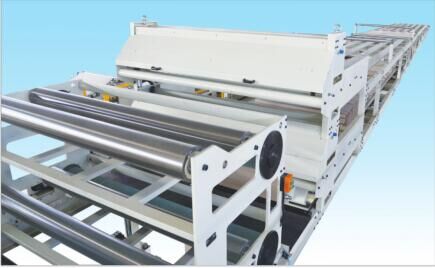

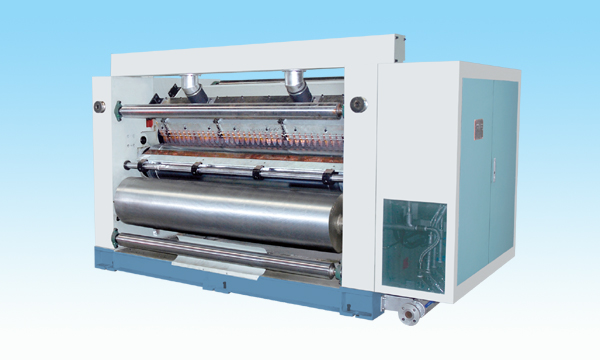

Pre-conditioner, Pre-heater, Auto-splicer, Single facer, Conveying span bridge,

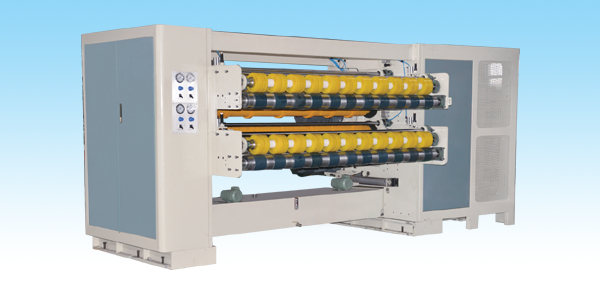

Multi-ply pre-heater, Glue application machine, Double facer, Slitter scorer,

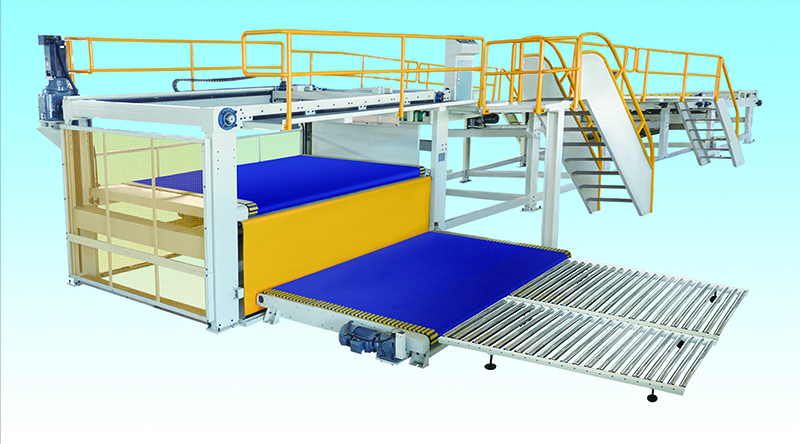

Cutoff, Conveyer and Stacker, Glue making system and Electric control system
etc.
Parameter
Max. production speed |
80-200m/min. |
Paperboard width |
1600-2500mm |
Type of corrugating roll |
A, C, B, E, F as per customer’s option |
Height of flute |
provided by the buyer and to be proved by the seller. |
Pressure of steam |
8~10Bar (actual input steam pressure) |
Consumption of steam |
1.5-2.0ton/hr |
Paper for production
|
flute paper: flute paper: 90-180g/m2 (can be lowest to 80g/sqm, depends on material); Facer paper: 120-250 g/m2 |
Power (apr.): |
120-450KW; |
Length of the corrugating line: |
55-95meters. |
Flute roller type
Flute type(mm) |
Flute height(mm) |
Flute in 300mm |
Paper shrinkage rate(%) |
A |
4.6±0.2 |
32±2 |
1.43―1.52 |
C |
3.6±0.2 |
40±2 |
1.37―1.46 |
B |
2.6±0.2 |
48±2 |
1.33―1.39 |
E1 |
1.6±0.15 |
74±3 |
1.25―1.32 |
E2 |
1.3±0.1 |
82±3 |
1.21―1.28 |
F |
0.7±0.1 |
126±6 |
1.15―1.23 |
G |
0.5±0.1 |
152±8 |
1.10―1.21 |
